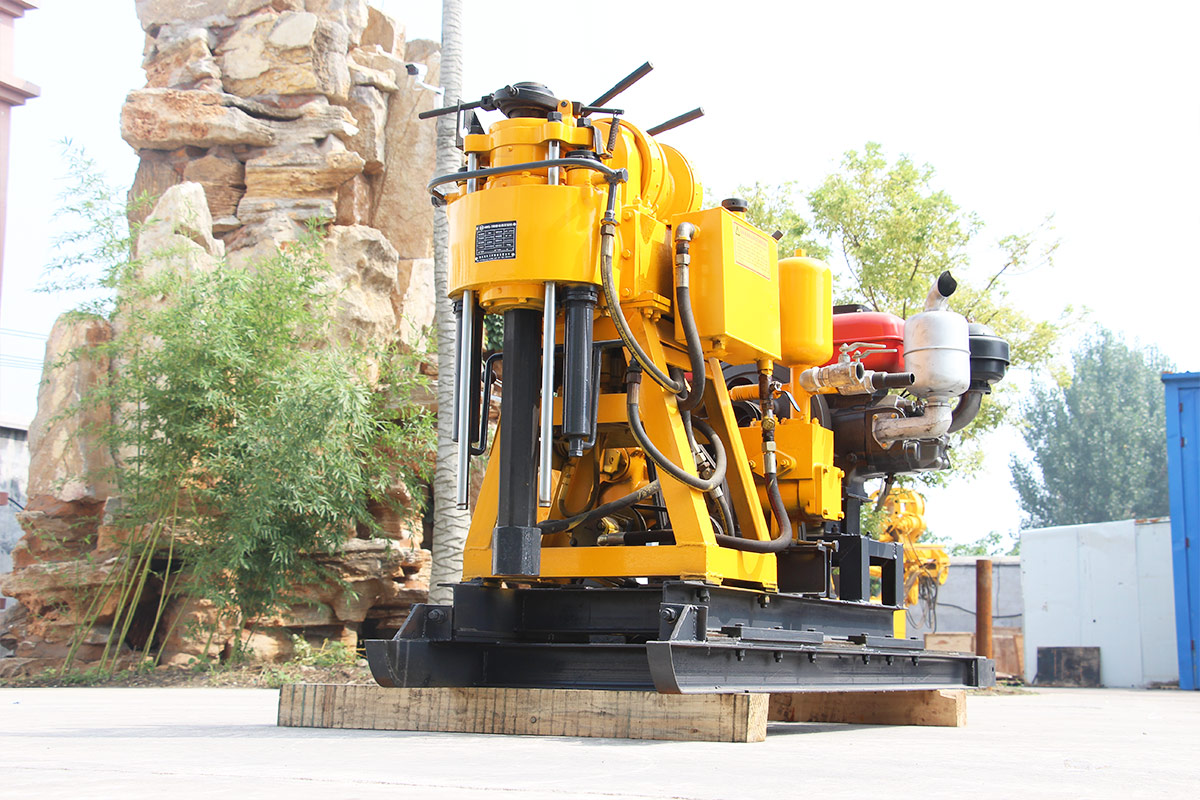

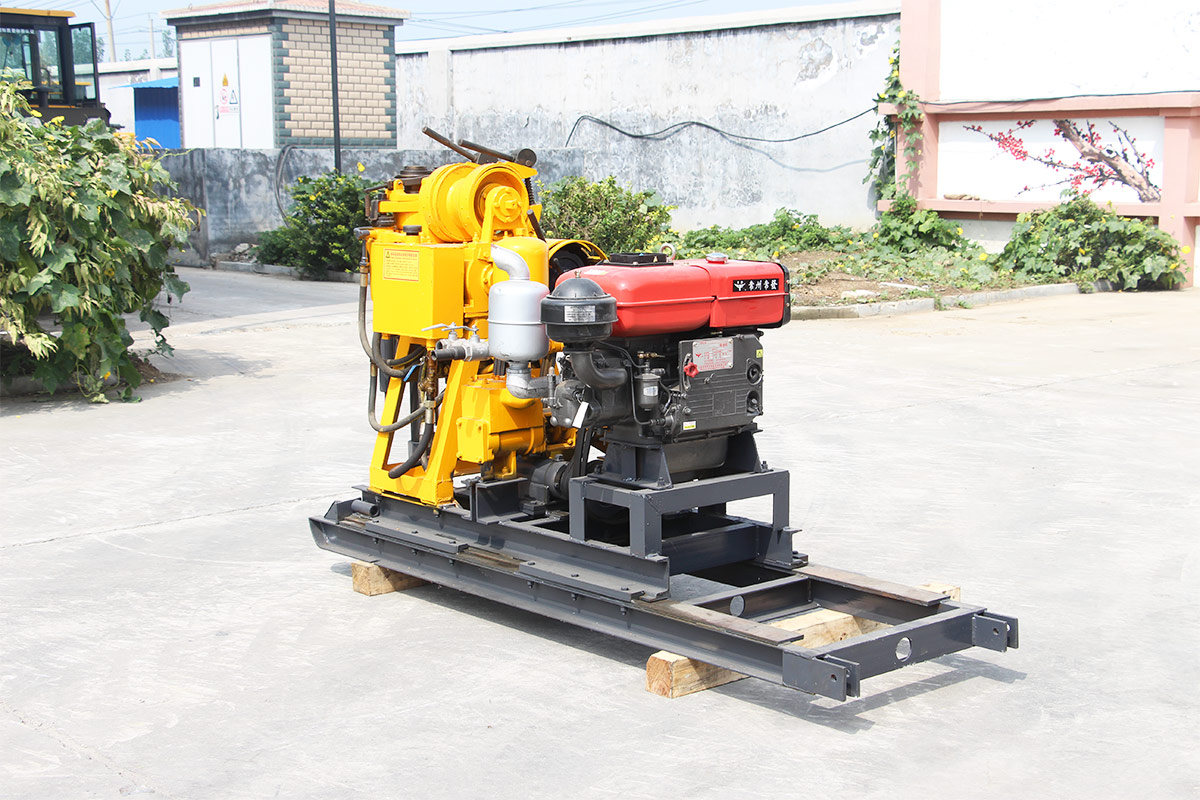

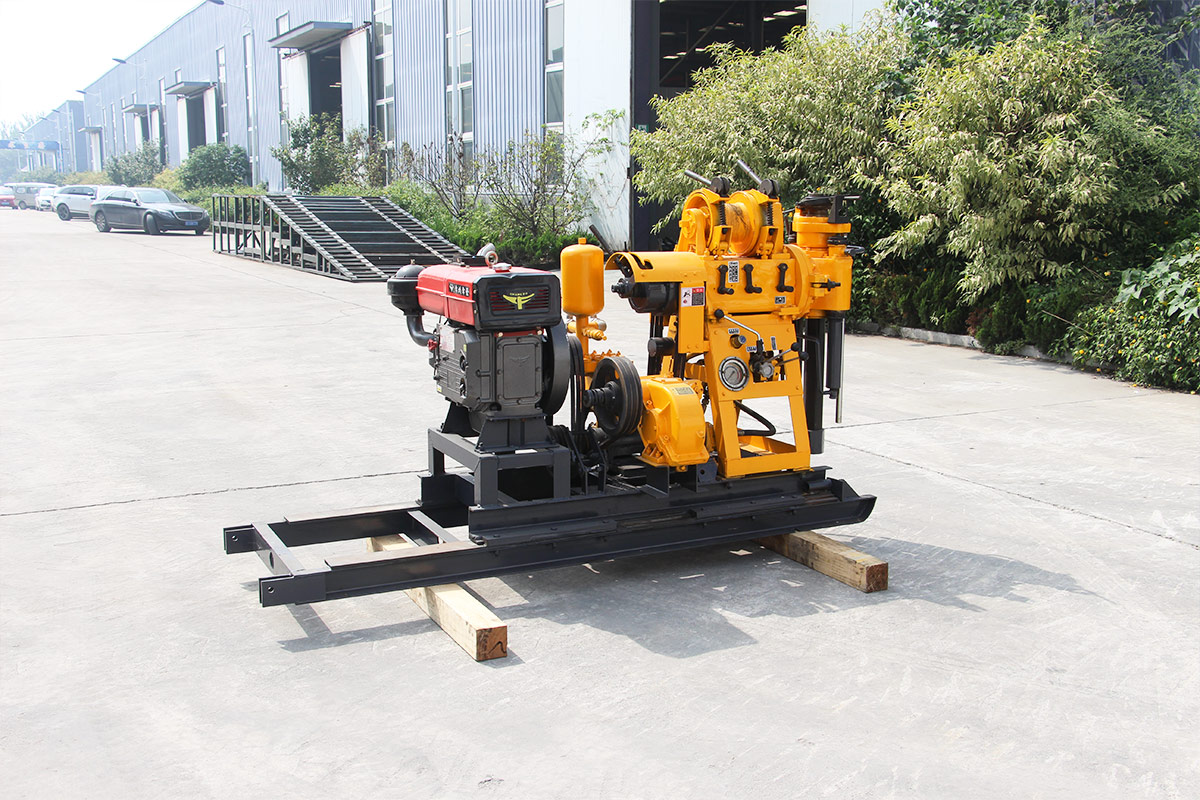

HW-190YY Hydraulic Drilling Rig
Drilling diameter: 75-300mm
Rated Power: 13.2kw
Hengwang's water well drilling rigs are designed to be robust, durable and highly reliable to provide safe, clean water in some of the world's most challenging environments that inferior rigs simply cannot cope with.
Main feature:
1. TDrilling rigs can be tracked or trucked.
2. High outriggers are convenient for loading and unloading, and can be directly loaded and unloaded without a crane.
3. The drilling rig has a wide range of uses and can be used for: water wells, mineral exploration, geothermal applications, soil surveys, rock coring, etc.;
| model | HW190YY | |
| Drilling depth | 190 | m |
| Opening diameter | 500(Soil)/220(Rock) | mm |
| final hole diameter | 75 | mm |
| Drill pipe diameter | 42-50 | mm |
| Drilling angle | 90-75 | ° |

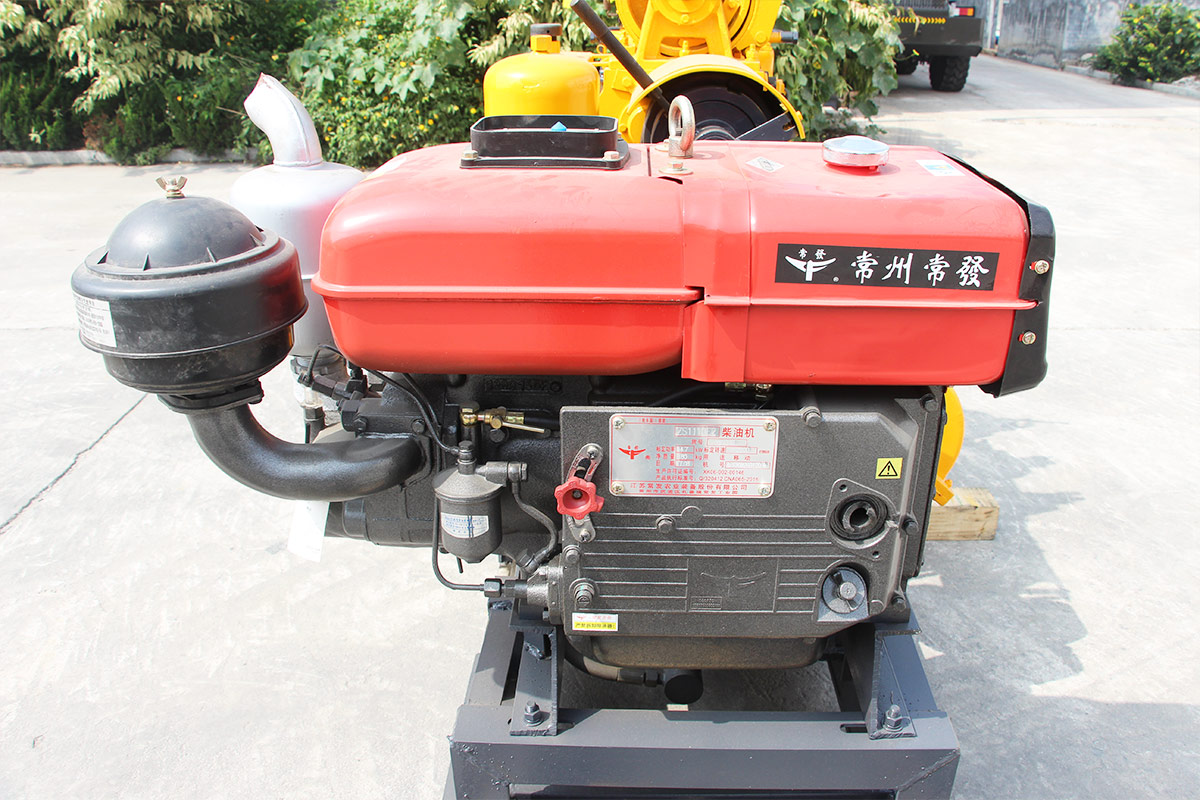

| Engine power | 13.2 | kw |
| weight | 900 | kg |
| Machine size | 2400*800*1400 | mm |
| Vertical shaft speed | 130/300/480/730/830/1045 | r/min |
| Vertical axis travel | 450 | mm |
| Single rope lifting force | 2100 | kg |
| Single rope lifting speed | 0.35-2.23 | m/s |
| Wire rope diameter | φ9.3 | mm |
| Wire rope capacity | 27 | m |
| Rated load | 18 | Ton |
| effective height | 6.5 | m |
| flow | 95 | L/Min |
| greatest pressure | 1.2 | Mpa |
| Optional configuration | Motor | |
Remark:
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
Submit the form for more parameters and quotes.
