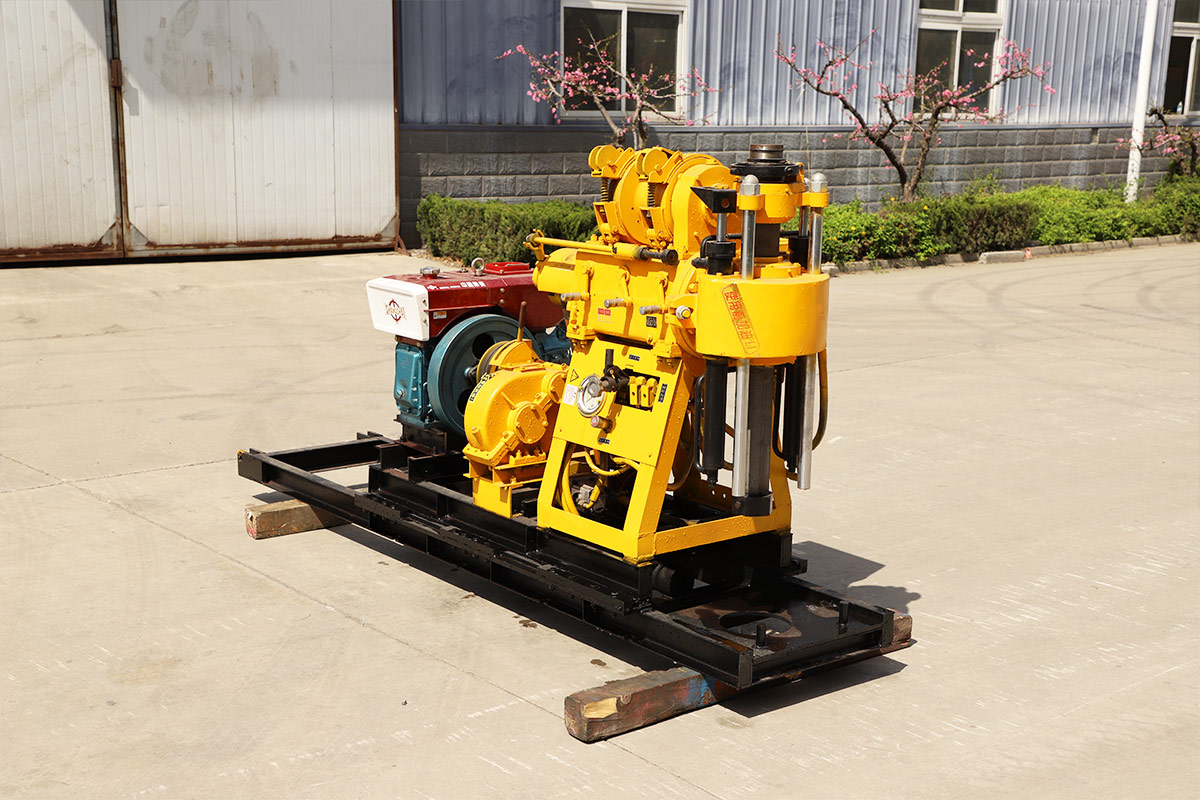

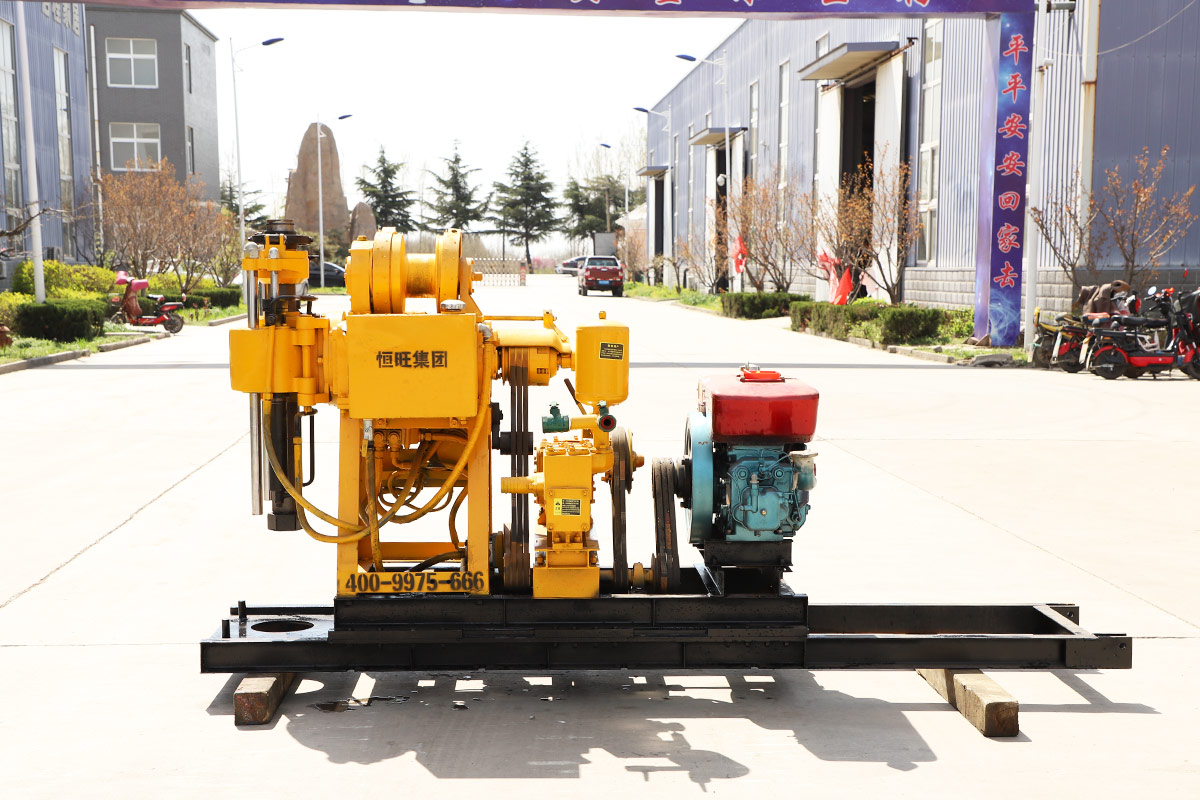

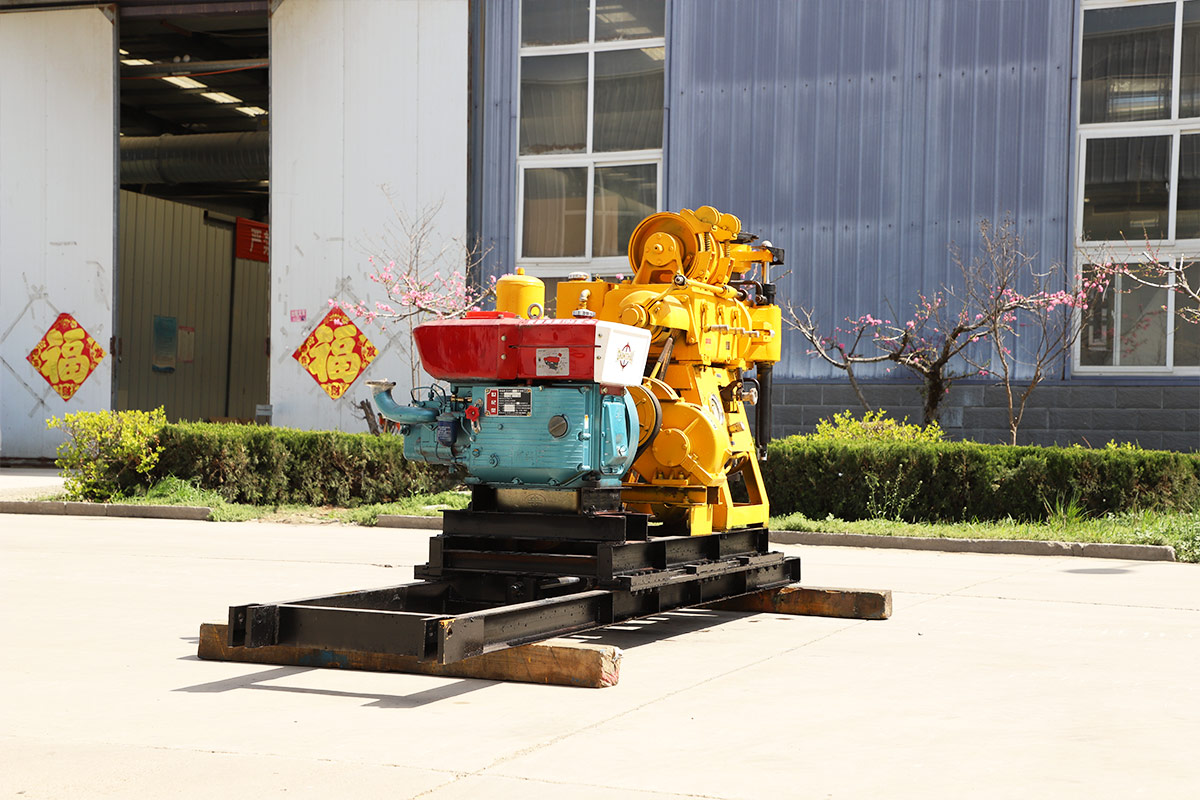

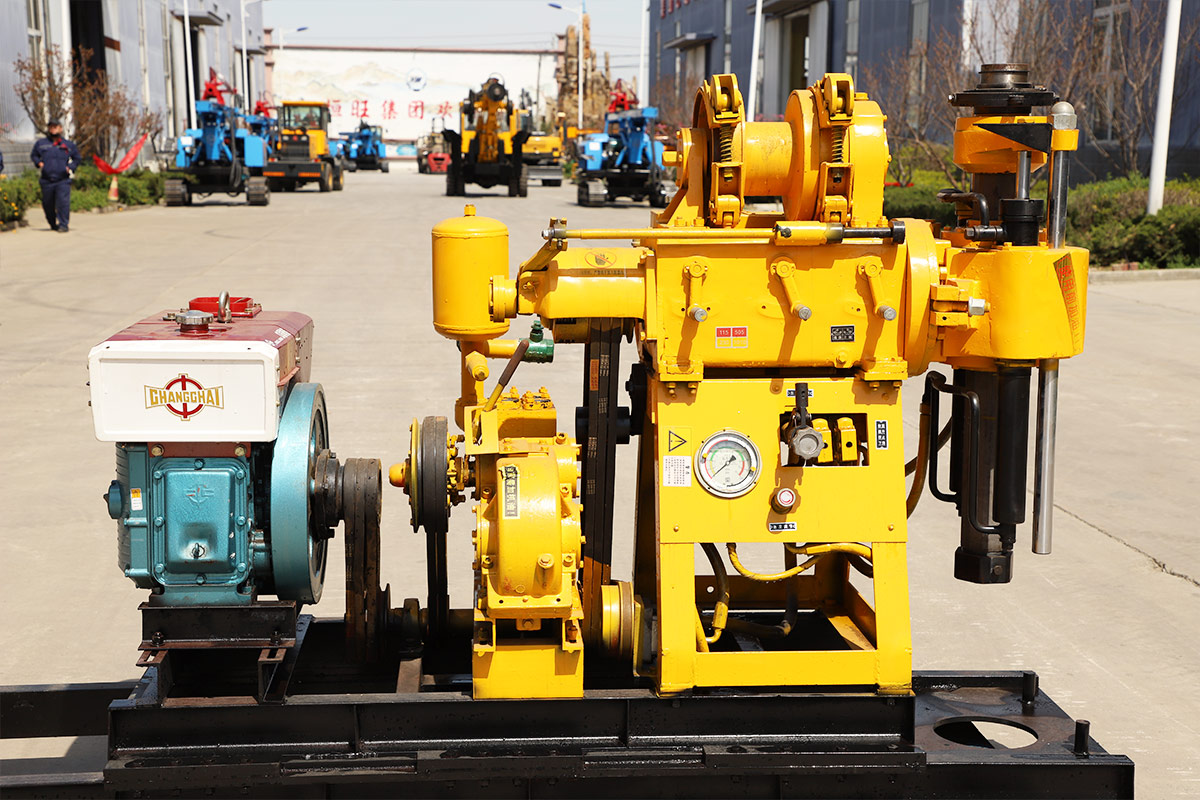

HW-230YY Hydraulic Drilling Rig
Drilling diameter: 75-300mm
Rated Power: 15Kw
Robust and versatile, the rig can be used in a variety of applications: small water wells, geothermal applications, soil surveys, coring and micropiles. The rig is designed to safely use a variety of drilling methods: direct circulation, downhole hammer drilling and auger drilling.
Main feature:
1. Adopt hydraulic automatic drilling mechanism to improve drilling efficiency and reduce labor intensity;
2. Hengwang water well drilling is specially designed for the perfect match between the engine and the hydraulic system, which improves performance and reduces fuel consumption by 7%;
3. The fuselage design is compact and lightweight, which can work in plains and mountainous areas with less damage to vegetation.
| model | HW230YY | |
| Drilling depth | 230 | m |
| Opening diameter | 500(Soil)/220(Rock) | mm |
| final hole diameter | 75 | mm |
| Drill pipe diameter | 42-50-60 | mm |
| Drilling angle | 90-75 | ° |
| Engine power | 15 | kw |
| weight | 950 | kg |
| Machine size | 2700*900*1500 | mm |
| Vertical shaft speed | 64/128/287/557 | r/min |
| Vertical axis travel | 450 | mm |
| Single rope lifting force | 2500 | kg |
| Single rope lifting speed | 0.12-0.95 | m/s |
| Wire rope diameter | φ12.5 | mm |
| Wire rope capacity | 35 | m |
| Rated load | 18 | Ton |
| effective height | 6.5 | m |
| flow | 145 | L/Min |
| greatest pressure | 2 | Mpa |
| Optional configuration | Motor | |
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
Submit the form for more parameters and quotes.
