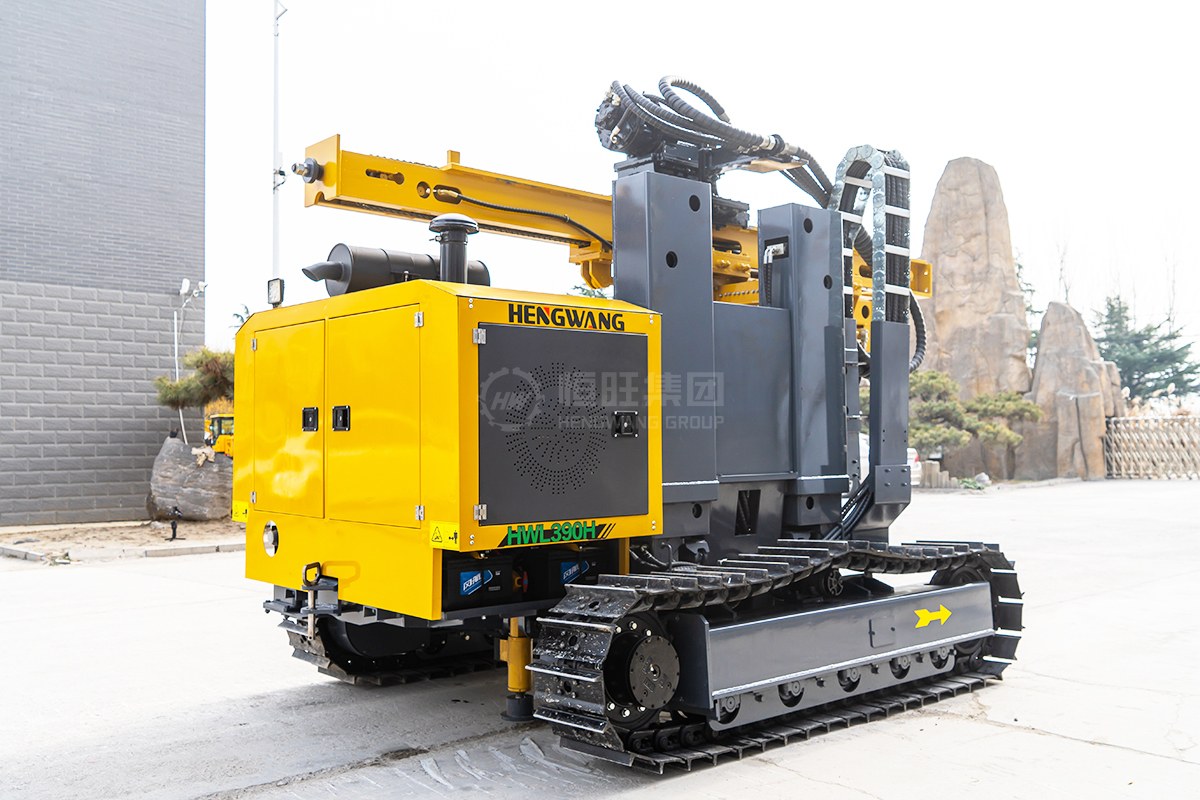

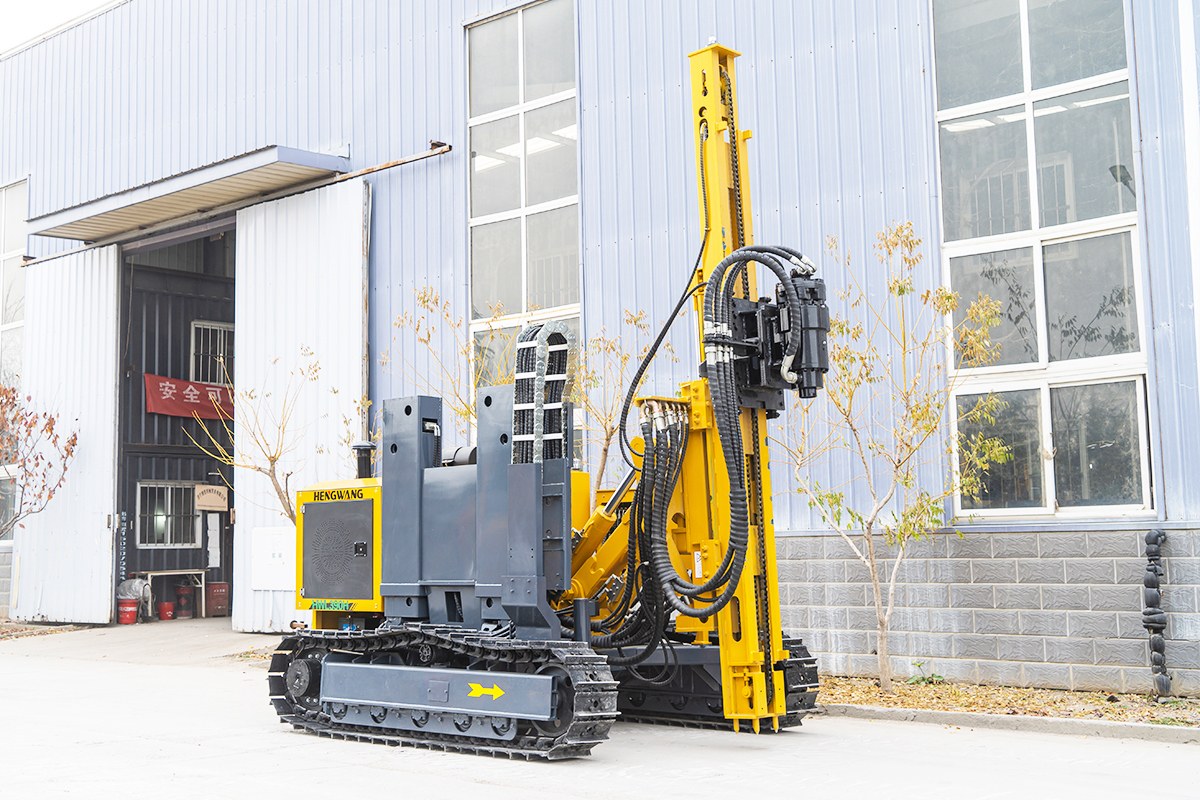

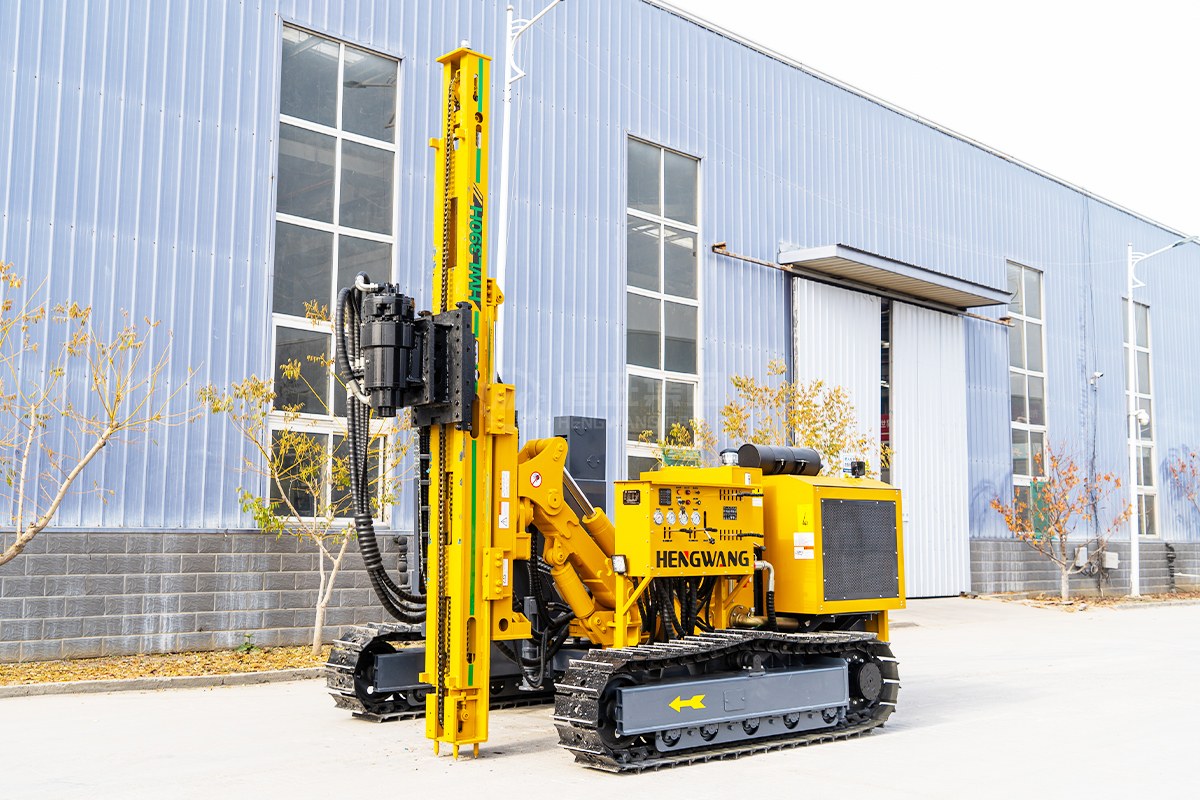

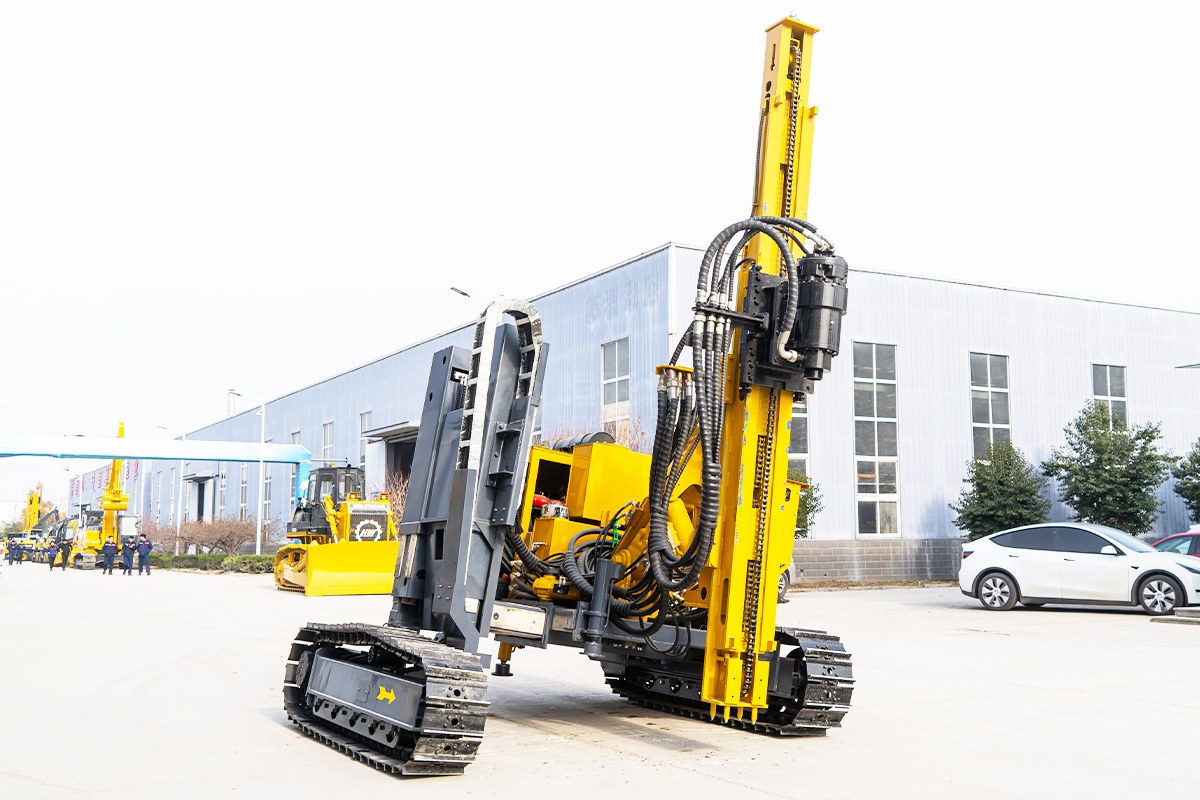

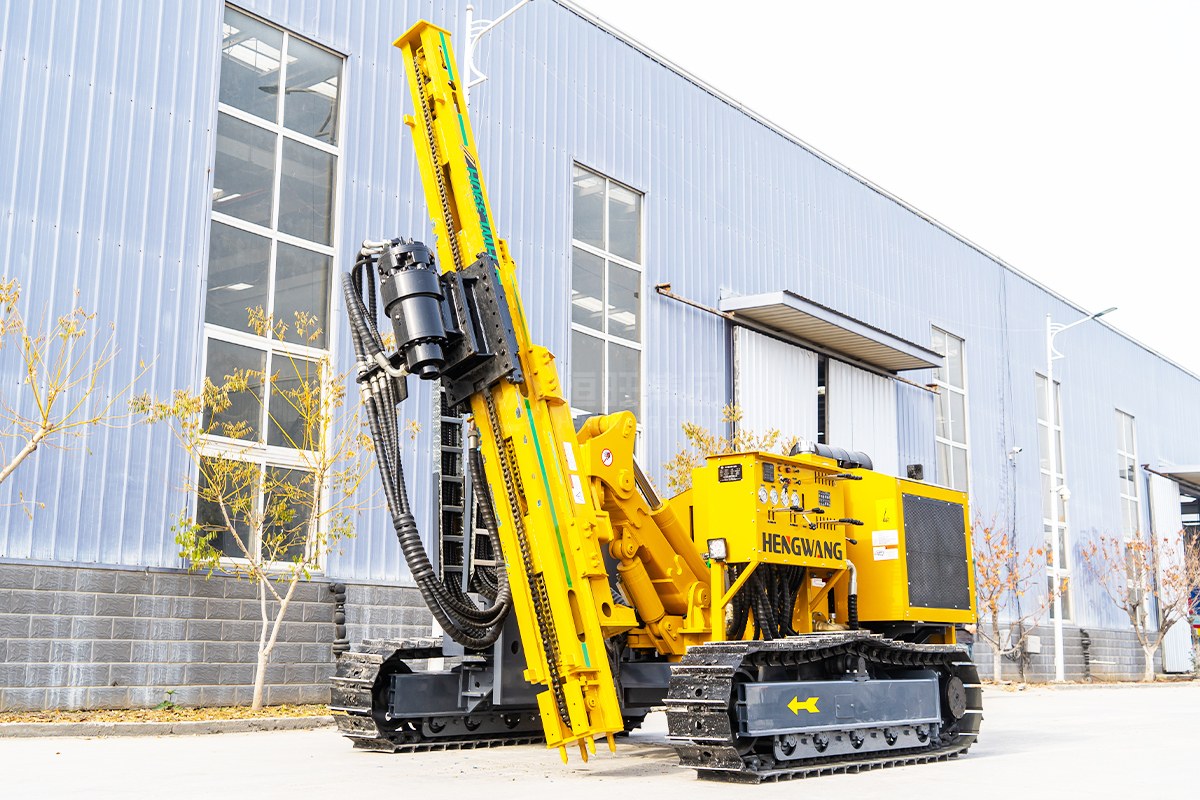

HWL390H Solar Pile Driver
Screw Drill Depth: 20m
Slope Working Angle : 45°
| Product number | HWL390H | |
| Drilling diameter (DTH hammer) | 90-400 | mm |
| Drilling depth | 30 | m |
| Air consumption | 10-26 | m³/min |
| Working pressure | 0.7-1.6（medium-pressure）/1.6-2.46（high pressure） | Mpa |
| Drill rod diameter | 76/89 | mm |
| rock hardness | 6-20 | F |
| Drilling diameter (auger) | Maximun400 | mm |
| Drilling depth | 20 | m |
| Auger diameter | 130-400 | mm |
| One thrust stroke | 2600 | mm |
| Slide pitch angle | 120 | ° |
| Slide swing angle | Left and right total 40 | ° |
| Drill arm swing angle | Left and right total 50 | ° |
| Rotating speed | 0-100 | r/min |
| Tilt working angle | 45 | ° |
| Working dimensions（L*W*H) | 3500*2200*4500 | mm |
| Shipping dimensions | 4500*2500*2800 | mm |
| weight | 7410 | kg |
| Driving speed | 0-2.5 | km/h |
| rated power | 85 | kw |
| maximum width | 2800 | mm |
| One side track deployment height | 1200 | mm |
The HWL390H Photovoltaic piling machine is a high-performance piling equipment developed by Hengwang Group specifically for various sites. It is designed not only for piling the foundations of photovoltaic power stations but also for applications in farms, pastures, forest farms, orchards, and other construction scenarios.
This versatile piling machine is suitable for a range of construction projects and offers efficient and reliable performance. Whether it's for solar power installations or other agricultural and forestry applications, the HWL390H Photovoltaic piling machine is designed to meet the specific requirements of different sites and provide effective piling solutions.
Main features:
1. Efficient and fuel-saving power engine: The HWL390H Photovoltaic piling machine is equipped with a power engine that is carefully designed for optimal fuel efficiency. It ensures stable and high-performance operation while minimizing fuel consumption.
2. High-performance hydraulic system: The piling machine utilizes high-quality hydraulic components and undergoes a strict assembly process. This ensures the efficiency and reliability of the hydraulic system, enabling smooth and efficient operation.
3. Stable and durable construction: The machine is constructed using international high-standard raw materials, which ensures the stability and durability of the overall structure. It can withstand the rigors of various construction environments and provide long-lasting performance.
4. Industrial aesthetic design: The HWL390H piling machine features a design that combines functionality with an industrial aesthetic. It not only performs its tasks effectively but also presents an appealing appearance.
Quote now for the best price.
